Products
Digital Printing Systems
Purpose-built corrugated digital printing systems for flexible short runs and continuous high-volume production.
SYSTEM INDEX / 03 SERIES / 04 MODELS
SCANNING ← PRODUCTION ARCHITECTURE → SINGLE PASS
Printing Technologies
Choose the production architecture that matches your order flow
Both systems print directly from TIF or PDF files without plates. The key difference is how the print system moves through production.
01 — Scanning Digital Printing
Flexibility for changing order mixes
Best for short runs, frequent job changes and flexible production.
The print carriage scans across the board, supporting small batches, multiple designs, personalised work and frequent job changes.
Reciprocating print movement
TYCHEN 2500 Series · BC-2500SM-8H / BC-2500SM-16H
02 — Single-Pass Digital Printing
Continuous output for higher-volume work
Best for continuous, high-volume production.
Fixed printheads image the board as it moves continuously through the printing area, supporting stable runs and higher throughput.
Continuous board feed
TYCHEN 1450 / 1800 Series · 16 / 24 printheads
System Fit
Which system fits your production?
| Decision factor | Scanning | Single-Pass |
|---|---|---|
| Order type | Small batches, many designs | Higher-volume, stable runs |
| Job changes | Frequent file and design changes | Fewer changes during continuous production |
| Printing method | Reciprocating print carriage | Fixed printheads, continuous board movement |
| Primary advantage | Production flexibility | Throughput and continuity |
Product Series
Three series for distinct production requirements
Scanning Digital Printer
TYCHEN 2500 Series
For small-batch corrugated work, multiple designs, personalised output and frequent job changes.
- 700 m²/h
- 8 or 16 Epson printheads
- TIF / PDF direct printing
BC-2500SM-8H / BC-2500SM-16H
Single-Pass Digital Printer
TYCHEN 1450 Series
For continuous corrugated production where throughput and repeatable board handling matter.
- 100 m/min at 600×300 DPI
- 528 mm print width
- 16 Epson printheads
BC-1450SPS-16H
Single-Pass Digital Printer

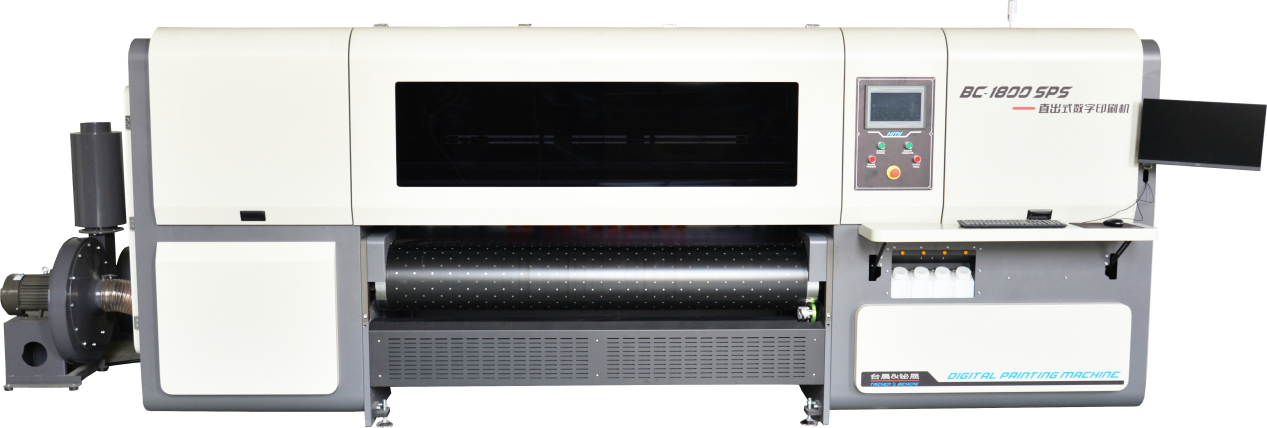

TYCHEN 1800 Series
For high-volume corrugated packaging production with continuous feed and a wider 792 mm print area.
- 100 m/min at 600×300 DPI
- 75 m/min at 600×600 DPI
- 24 Epson printheads
BC-1800SPS-24H
Product Selection
Not sure which system fits your production?
Share your corrugated board size, typical order volume, expected speed and design-change frequency. We will help narrow the choice.
